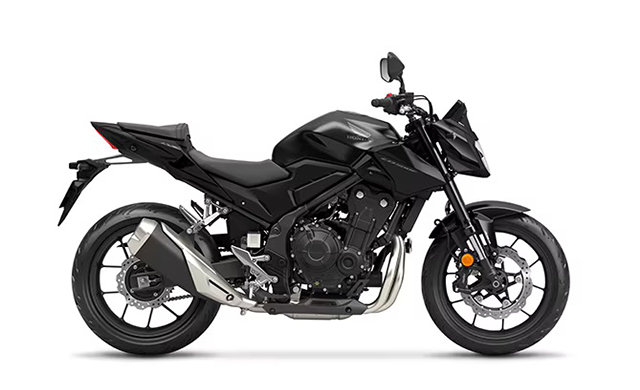

2025 Honda CB500F at Great Lakes Honda

Standard

• Displacement : 471 cc
• Bore & Stroke : 67 mm x 66.8 mm
• Compression Ratio : 10.7:1
• Fuel Delivery : PGM-FI electronic fuel injection with 34 mm throttle bodies
• Transmission : Six-speed
• Engine Type : Liquid-cooled parallel twin
• Valve Train : DOHC, four valves per cylinder
• Final Drive : 520 chain (15T/41T)

Standard

• Warranty : 12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
• ABS System : 2-channel
• Tires : Front: 120/70-17, Rear: 160/60-17
• Seat Height : 785 mm (30.9 in)
• Wheelbase : 1,410 mm (55.5 in.)
• Fuel Capacity : 17.1 litres
• Brakes : Front: Twin four-piston calipers with 296 mm discs, Rear: 240 mm disc
• Curb Weight : 188 kg (414 lb) including required flu

Standard

• Front Suspension : 41 mm Showa SFF-BP (Separate Function- Big Piston front Fork); 108 mm (4.3 in.) travel
• Rear Suspension : Pro-Link single shock with spring preload; 119 mm ( 4.7 in.) travel
