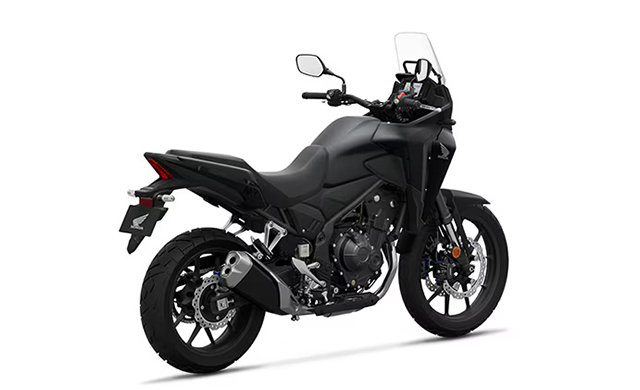

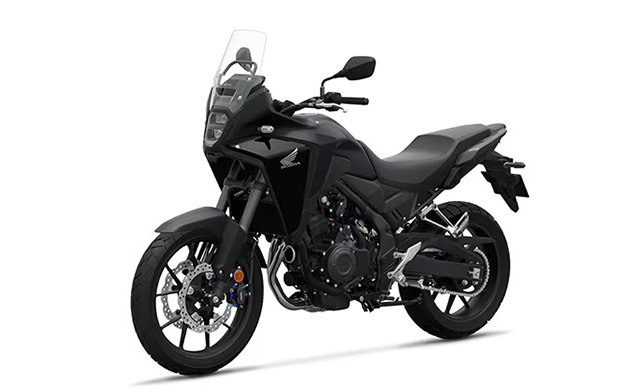

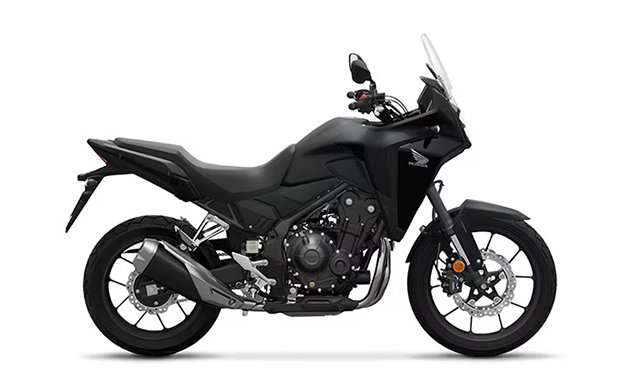

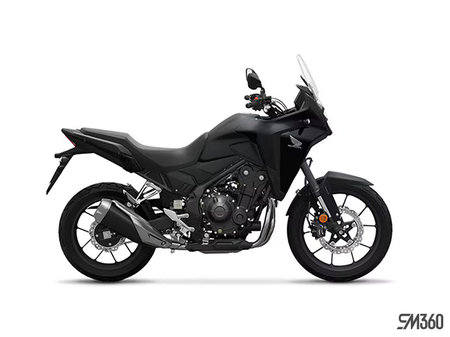

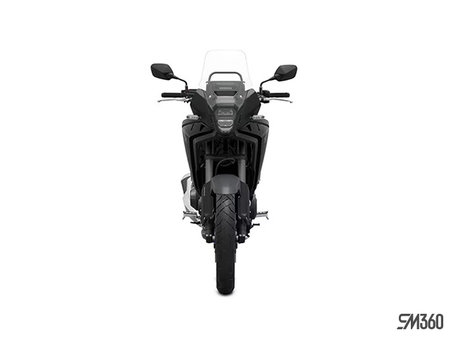

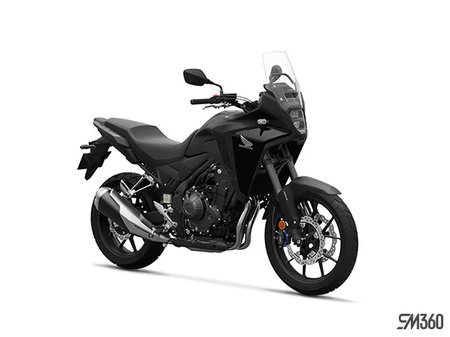

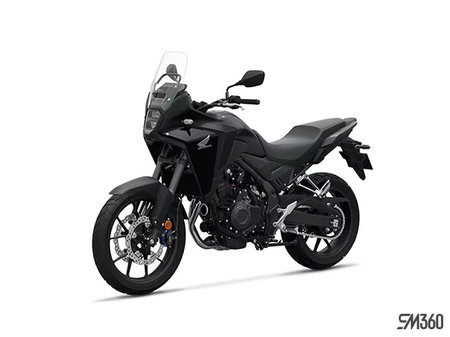

2025 Honda NX500 ABS at Great Lakes Honda

Standard

• Displacement - 471 cc
• Compression ratio - 10.7:1
• Type - Liquid-cooled parallel-twin
• Bore and stroke - 67 mm x 66.8 mm
• Valve system - DOHC, four valves per cyclinder
• Fuel delivery - PGM-FI electronic fuel injection with 34 mm throttle bodies
• Transmission - Six-speed
• Final Drive - #520 chain (15T/41T)

Standard

• Warranty - 12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
• ABS - 2 channel ABS
• Tires -: Front: 110/80-19 Rear: 160/60-17
• Brakes - Front: Twin four-piston calipers with 296mm discs ; Rear: 240 mm disc
• Wheelbase - 1,445 mm (56.9 in)
• Fuel capacity - 17.5 litres
• Seat height - 833 mm (32.7 in)
• Curb weight - 196 kg (432 lb) including required fluids and full tank of gas—ready to ride

Standard

• Front suspension - 41 mm Showa SFF-BP (Separate Function- Big Piston front Fork); 133 mm (5.2 in.) travel
• Rear suspension - Pro-Link single shock with spring preload adjustment; 135 mm ( 5.3 in) travel
