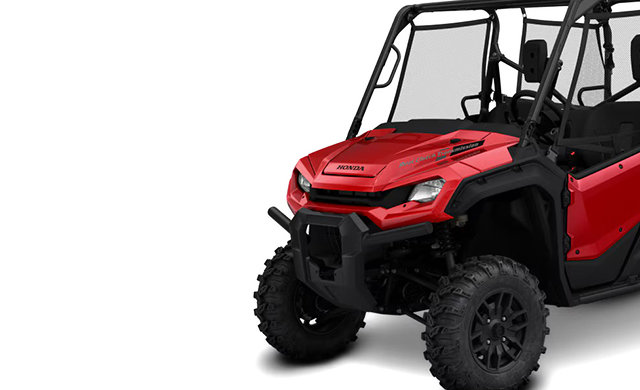

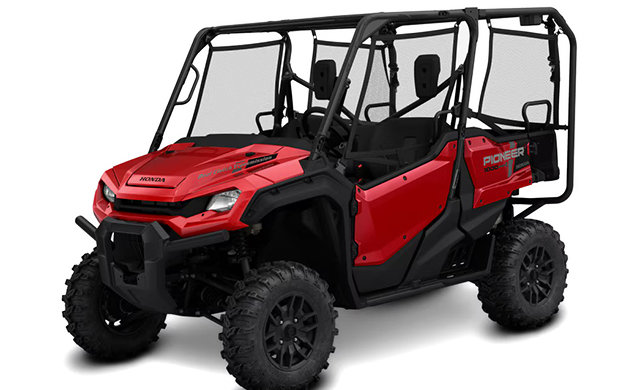

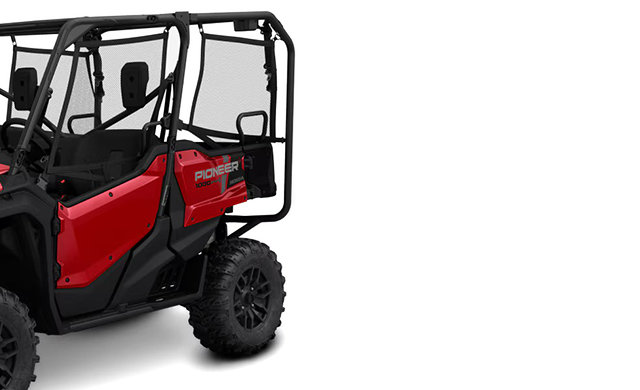

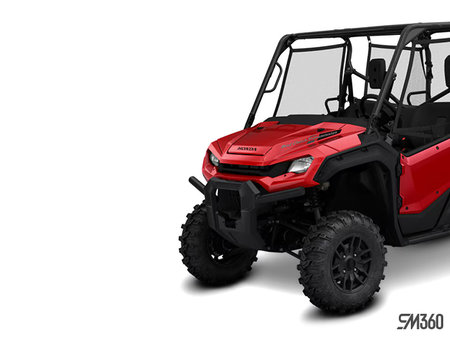

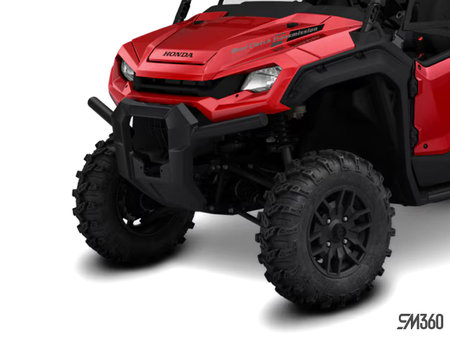

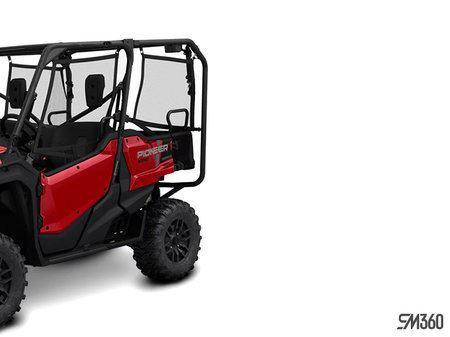

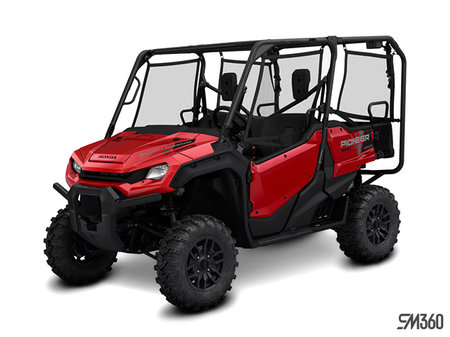

2025 Honda Pioneer 1000-5 Deluxe at Great Lakes Honda

Standard

• Engine Type : Liquid-cooled longitudinally mounted parallel-twin cylinder
• Displacement : 999 cc
• Bore & Stroke : 92 mm x 75.1 mm
• Compression Ratio : 10.0:1
• Valve Train : Unicam, 4 valves
• Fuel Delivery : PGM-FI electronic fuel injection with 44 mm throttle body
• Power Steering: Standard
• Final Drive : Direct front and rear driveshafts
• Transmission :Fully automatic, Six-speed plus reverse Dual Clutch Transmission with Sport Mode and Manual Mode with Paddle Shifting. High/Low Range Sub-transmission. Four drive modes include Turf, 2WD, 4WD, and 4WD with differential lock.

Standard

• Tires : Front: 27 x 9 - 14, Rear: 27 x 11 - 14
• Brakes : Front: Front: Dual 210 mm discs, Rear: Dual 210 mm discs
• Towing Capacity : 1,134 kg (2,500 lb)
• Bed Capacity : 454 kg (1,000 lb)
• Length : 3,037 mm (119.6 in)
• Width : 1,599 mm (63 in)
• Height: 1940 mm (76.4 in)
• Ground Clearance: 312 mm (12.3 in)
• Wheelbase : 2,038 mm (80.2 in)
• Curb Weight : 790 kg (1,742 lb)
• Warranty : 12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
• Fuel Capacity : 30.0 liters, including 6.4-liter reserve

Standard

• Front Suspension : Independent double-wishbone; 268 mm (10.6 in) travel
• Rear Suspension : Independent double-wishbone; 254 mm (10 in) travel
