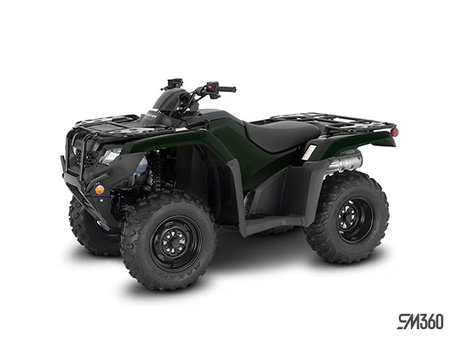

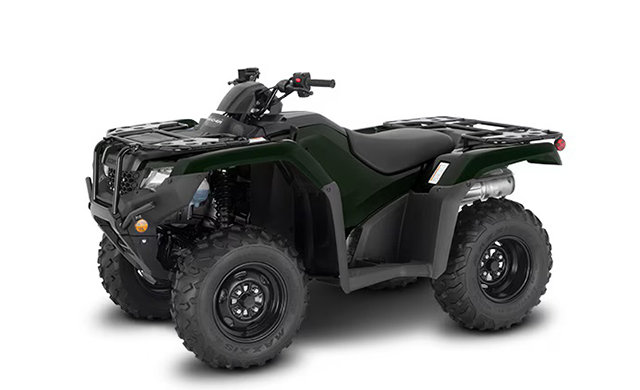

2025 Honda TRX420 RANCHER at Great Lakes Honda

Standard

• Transmission: Five-speed with automatic clutch, reverse and ultra-low first gear
• Engine Type: Liquid-cooled longitudinally mounted single-cylinder
• Displacement: 518 cc
• Valve Train: OHV, 2 valves
• Fuel Delivery: PGM-FI electronic fuel injection
• Final Drive: 2WD/4WD; direct front and rear driveshafts with 2WD/4WD shifter and torque-sensing front differential
• Bore & Stroke: 96.0 mm x 71.5 mm
• Compression Ratio: 9.5 : 1

Standard

• Warranty: 12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
• Brakes: Front: dual 190 mm discs / Rear: 160 mm sealed mechanical drum
• Width:1,205 mm (47.4 in.)
• Wheelbase: 1,269 mm (50 in.)
• Fuel Capacity: 14.7 litres, including 4.9 litre reserve
• Towing capacity:385 kg (850 lb.)
• Curb Weight: 297 kg (655 lb) including required fluids and full tank of gas—ready to ride

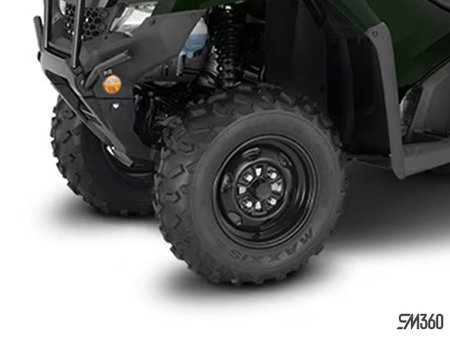

• Tires: Front: 25 x 8 - 12 Rear: 25 x 10 - 12
• Length: 2,106 mm (82.9 in)
• Ground Clearance: 190 mm (7.5 in)
• Cargo capacity: Front rack: 30 kg (66 lb.) / Rear rack: 80 kg (176 lb)
• Colour: Avenger Red, Black Forest Green

Standard

• Front Suspension: Independent Double A-Arm with adjustable hydraulic shocks; 185 mm (7.3 in) travel
• Rear Suspension: Swingarm with single adjustable hydraulic shock; 185 mm (7.3 in) travel
