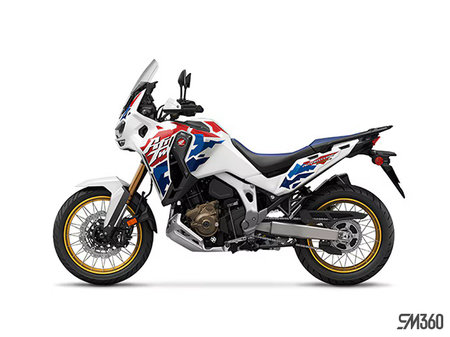

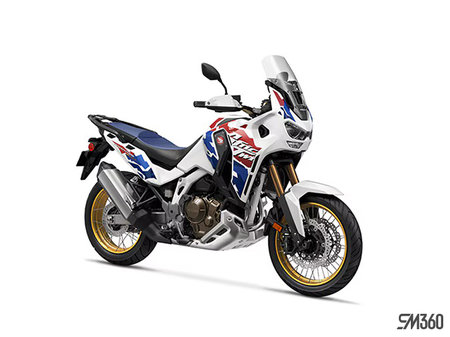

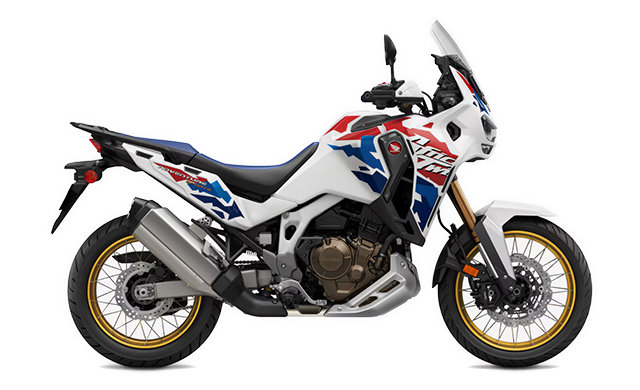

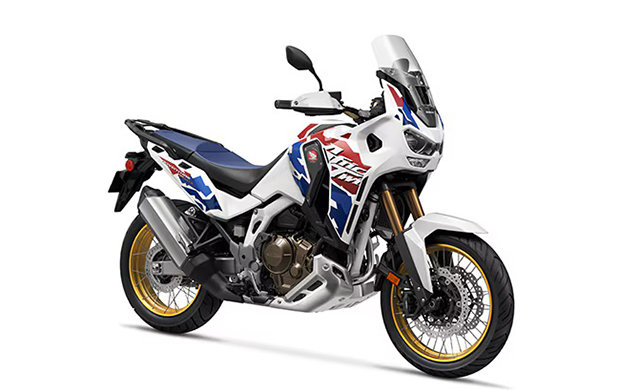

2025 Honda Africa Twin Adventure Sports ES Manual at Great Lakes Honda

Standard

• Type - Liquid-cooled parallel twin with 270° phased crankshaft
• Displacement - 1,084 cc
• Bore and stroke - 92 mm x 81.5 mm
• Valve system - SOHC, Unicam, 4 valves per cylinder
• Fuel delivery - PGM-FI electronic fuel injection with 46 mm throttle bodies
• Compression Ratio - 10.5:1
• Final drive - #525 chain; 16T/42T
• Transmission - Six-speed

Standard

• Warranty - 12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
• Fuel capacity - 24.8 Litres
• ABS - 2 channel with IMU. Selectable ABS MODE with on-road and off-road setting, Rear ABS on/off switch

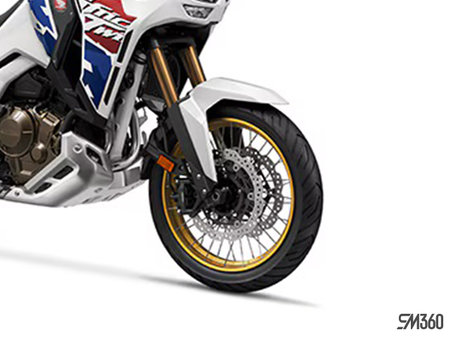

• Brakes - Front: Two four-piston hydraulic calipers w/ 310mm disks; Rear: Single one-piston hydraulic caliper w/ 256mm disk
• Tires - Front: 110/80-19 tubeless type , Rear: 150/70-18 tubeless type
• Seat height - 835 mm (32.8 in) / 855 mm (33.7 in)
• Curb weight - 234 kg (536 lb)
• Ground clearance - 220 mm (8.7 in)
• Wheelbase - 1 550 mm (61 in)

Standard

• Front suspension - Electronically controlled Showa EERA™ 45mm inverted telescopic fork with spring preload, compression and rebound damping adjustability; 210 mm (8.3 in) travel
• Rear suspension - Pro-Link system with electronically controlled Showa EERA with spring preload, compression and rebound damping adjustability, 200 mm (7.8 in) rear wheel travel
