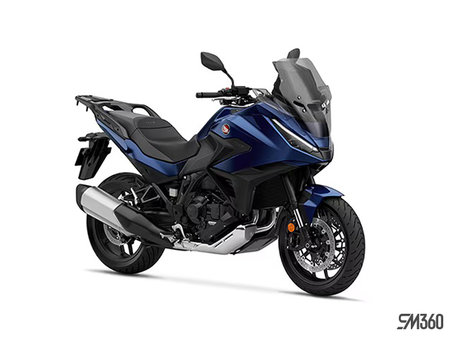

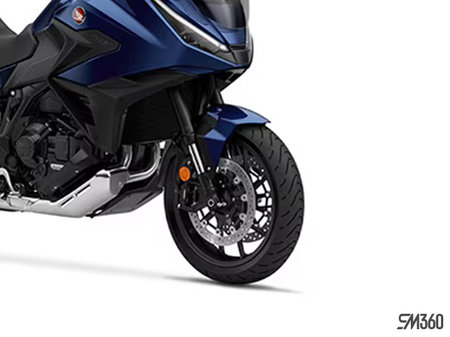

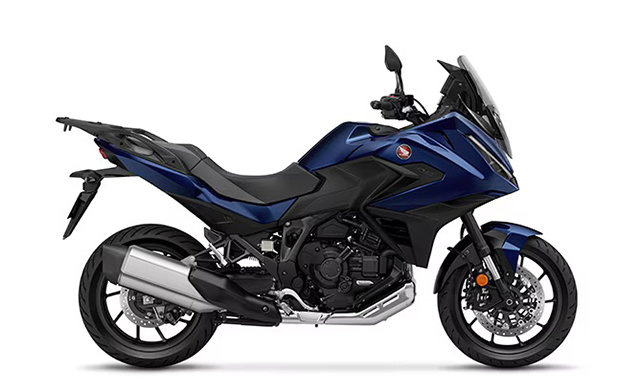

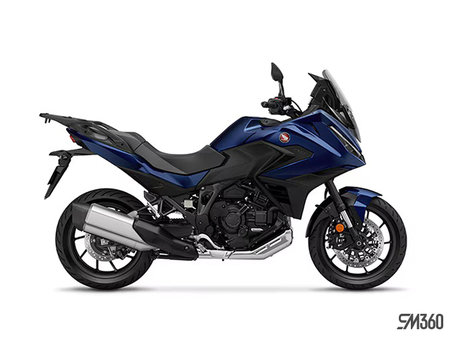

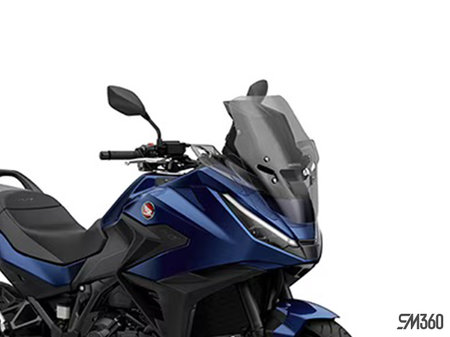

2025 Honda NT1100 Manual at Great Lakes Honda

Standard

• Valve Train : DOHC, four valves per cylinder
• Engine Type : Liquid-cooled parallel twin
• Final Drive : Chain
• Displacement : 1,084cc
• Bore & Stroke : 92 x 81.5 mm
• Compression Ratio : 10.5 : 1
• Fuel Delivery : PGM-FI Fuel Injection
• Transmission : 6-speed, multi-plate wet

Standard

• Warranty : 12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
• ABS System : 2- channel
• Seat Height : 785 mm (30.9 in.)
• Tires : Front: 120/70-17, Rear: 80/55–17
• Brakes : Front: Radial mounted four-piston brake caliper, 310 mm floating double disc, Rear: Single piston caliper, 256 mm single disc
• Ground Clearance: 175 mm (6.8 in)
• Wheelbase : 1,535 mm (60.4 in)
• Curb Weight : 238 kg (525 lb)
• Fuel Capacity : 20.4 litres

Standard

• Front Suspension : SHOWA 43 mm SFF-BP type inverted telescopic fork with dial-style preload adjust, 150 mm stroke.
• Rear Suspension : Monoblock aluminium swing arm with Pro-Link with SHOWA gas-charged damper, hydraulic dial-style preload adjuster, 150mm travel.
